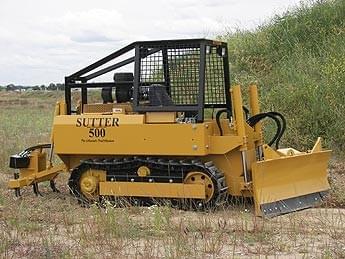

Sutter 500 Trail Dozer

Listed on the Federal Highway Administration Mechanized Trail Building website.

The Sutter 500 Trail Dozer is our flagship machine — the heavy-duty standard for professional trail construction, forestry and technical earthwork. Built and supported end-to-end from our Mound House, Nevada plant.

Standard Features

Built for the job, right off the trailer.

Seat Belt

ROPS (OSHA certified)

Control panel warning lights

Vandal protection kit

Single digital gauge showing Tach/Hourmeter, Fuel, Oil, Water Temp, Volts, etc.

Rock Guards

Cold Weather Starting

Heavy-Duty Engine Cooling System

Safety Brake

Limb Risers

Draw Bar

3-point: Rippers, 3 shank, Float

Foot & Arm Rests

Brass Wear Plates

6-Way Blade with Lift & Tilt Float

Dry Cell Battery

Hydraulic Fluid level/temp gauge

Auxiliary Hydraulics

Side Brush Screens

Hydraulic Oil Cooler

Tie Down Hooks (set of 4)

Powder Coat Finish

Minimum 2" clearance between tracks and full length of trail dozer body for cleaning/maintenance

Options

Optional configurations.

HVAC Cab

We are listed on the Federal Highway Administration Mechanized Trail Building website — the standard reference for mechanized trail construction in North America.

Electronic Steering

Specifications

Model

Kohler Turbo Diesel

EPA Rating

Tier 4 Final

Output

Diesel

Torque

74 HP @ 2,000 RPM

Type

4 cylinders

Cooling Medium

Water

Electrical System

12 volts

Max Inclination (all angles)

35 degrees

Fuel Consumption (Avg)

1.0 Gal/Hr approx.

Type

Gear Pump 15-20 g.p.m., 2200 PSI, triple filtration, 10 micron

Sutter 500 — full specs.

Pumps

Sauer-Danfoss twin hydrostatic

Torque Hubs

Auburn Gear · 100,000 in·lb

Make

Berco

Rollers

1 Top, 5 Bottom

Shoes per Track

Tracks

11″ × 62″

Ground Pressure

6.5 PSI

Fuel Tank

28 Gal

Hydraulic System

20 Gal

Crankcase

12 Qt (approx. — start checking after 10)

Construction

1/2″ high tensile steel, unitized with full belly pan, hardened steel pins and bushings, designed for heavy dozer services, rock guards AR plate

Width

48″

Length (with blade)

13′ 1″

Height

6′ 8″

Ground Clearance

8″

Travel Speed

0–5 MPH

Gross Weight

9,000 lb

Type

6-way with Lift & Tilt Float

Max Blade Lift

24″

Max Blade Drop

24″

Angle

30°

Tilt

25°

ROPS

ISO 3471: 2008

FOPS

ISO 3449: 2005 Level II

Regulatory

California Code of Regulations, Title 8, Section 1596

Field Reports

“We had $75,000 and three months budgeted to finish the last 7.5 miles of the Pacific Crest Trail and we finished it in 8 days at a cost of less than $8,500 with our Trail Dozer.”

Arcadia, CA

What operators are saying.
